Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive

Name: Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive
Brand: SongFast
Price: 37.80 USD

Buy cheap Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive product

Place of Origin : Dongguan,China

Brand Name : SongFast

Certification : ISO 9001, IATF 16949

MOQ : 500pcs

Price : $37.80 - $40.80/pieces

Packaging Details : According to customer requirements

Delivery Time : 30-day lead time

Payment Terms : T/T

Supply Ability : 10000pcs/month

Pressure Type : Gauge Pressure, Negative Pressure, Absolute Pressure

Range : ≤±1%F.S；Customizable

Housing Materials : SUS304 stainless steel (standard),Copper (optional), 316Lstainless steel (optional), Customizable

Sensor Materials : Ceramic (Standard)

O-ring Materials : NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials : RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection : Thread speciﬁcations can be customized according to customer requirements

Protection Rating : IP65、IP67、Customizable

Long-term Stability : 0.1%F.S.±0.05%/year

Insulation Resistance : >100M Ω @50V DC

Contact Now

Customizable Industrial Pressure Sensor for Industrial Control and Automotive Applications Compact and Lightweight Design

Features

Wide Temperature Range: -40℃ to 105℃
Compact Structure: Excellent cost-effectiveness
Advanced Technology: Algorithm compensation and correction
Overload Resistance: 150% F.S. performance
High Impact Resistance
Multiple Signal Outputs
Customization: Supports various specifications

Applications

Industrial Control
Automobiles and Ships
Petrochemical Industry
Construction Machinery
Aerospace

Description

The 300 Series Transmitter is an independently developed product specifically designed for specialized industrial pressure applications. Its core sensor features a high-precision sputtered thin-film element, offering:

Compact Size and Lightweight Design
High Accuracy
Impact Resistance

With easy installation and superior performance, this transmitter is ideal for measuring industrial liquids and gases. It excels in various sectors, including:

Industrial control
Automotive and marine industries
Petrochemical industry
Construction machinery

Our manufacturing process encompasses every stage, from R&D design and production assembly to calibration and quality inspection, all adhering strictly to international quality production standards. This ensures that we deliver products of the highest quality and reliability.

Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive

Speciﬁcations

Model	300 Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1…2000 bar (Customizable)
Accuracy	≤ ±0.25%F.S； ≤ ±0.5%F.S；Customizable
Electrical Performance	2-wire		3-wire
Output Signal	4~20mA		0~5V	0~10V	0.5~4.5V
Supply Voltage	10-30V DC		8~32V DC	12-32V DC	8-32V DC / 5V DC
Operating Temperature	-40℃~105℃(Medium temperature), Customizable
Storage Temperature	-40℃~105℃
Electrical Connection	M12 Aviation Connector, Straight Connection, Packard Connector, Hirschmann Connector, Customizable
Pressure Connection	Internal Thread	7/16~20 UNF
	External Thread	1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
	Customizable	Thread speciﬁcations can be customized according to customer requirements
Materials	Housing	SUS304 stainless steel (standard), Copper (optional), 316Lstainless steel (optional), Customizable
	Sensor	Sputtered ﬁlm (standard 17-4PH), Customizable
	O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	1000% F.S. (P ≤600bar); 200% F.S. (600bar＜P ≤2000bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Deﬁnitions

Wiring Deﬁnitions

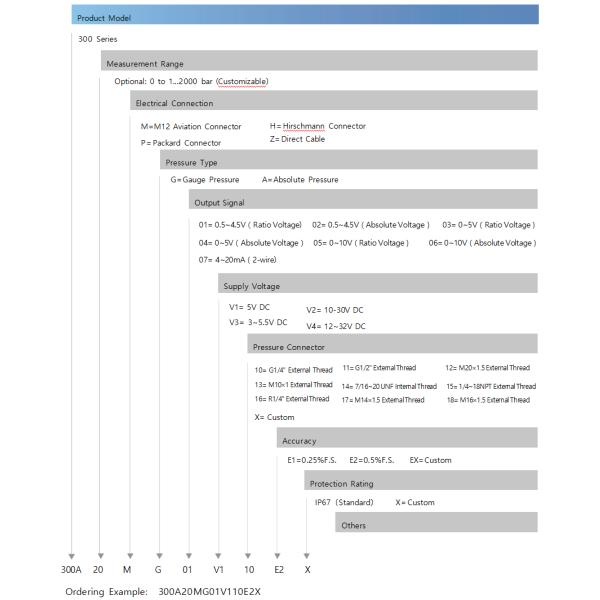

Ordering Guide

FAQ

Q1: What gives Songfast a competitive edge in the market?
A: Songfast’s technical team boasts over 20 years of specialized experience in the sensor industry. We are dedicated to providing rapid, professional solutions tailored to our clients’ specific needs, and we readily accommodate custom requests. Our quality management team ensures rigorous oversight throughout production, enabling us to uphold strict quality standards and guarantee delivery within 30 days.

Q2: Which certifications and compliance standards has Songfast achieved?
A: We proudly hold the following certifications:

ISO 9001 (Quality Management)
IATF 16949 (Automotive Industry)
ISO 45001 (Occupational Safety)
ISO 14001 (Environmental Management)

In addition, we have secured over 20 national patents, underscoring our commitment to innovation and leadership in the industry.

Q3: Does Songfast provide custom product development beyond the existing catalog?
A: Yes, we offer comprehensive custom development services to address unique requirements that extend beyond our standard product offerings.
